Programmers Home Programmer Adapter IC Programming Services.jpg How to do EPROM Programming


SMD Programming Adapters
(Current lead time is about 2 weeks for these adapters.)
For these Universal Chip Programmers:
SuperPro-6000, 6000E
SuperPro-5000, 5000E
Device Programmers
And these Universal Gang Programmers:
SuperPro-6004-GP,
SuperPro-5004-GP, 5004E-GP
Device Programmers
( Socket adapters for OTHER programmers)

Typical view of SMD programmer adapters:

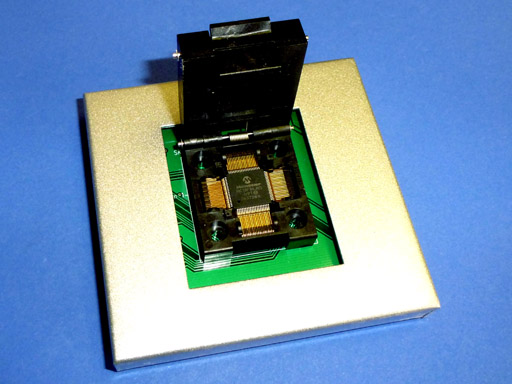

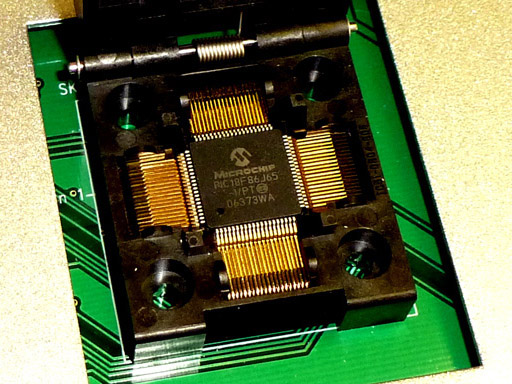

TQFP adapter Typical Top TQFP programmer adapter Close up TQFP programmer adapter bottom view Bottom

Jump to:
PLCC Device PLCC Adapters SOIC Device SOIC Adapters
TSOP Device TSOP Adapters TSOP Device TSSOP Adapters
PSOP Device PSOP, SSOP Adapters LAP,MLP Device DFN, MLP, LAP Adapters
TQFP Device TQFP (LQFP) Adapters QFN Device QFN, MLF, LCC Adapters
QFP Device QFP (PQFP, MQFP) Adapters BGA Device BGA Adapters
Vacuum pickup sucker SMD Suckers and MISC Adapter storage case Adapter storage case

Programmer adapters for PLCC IC chips
Pitch=1.27 mm
# of Pins IC Body Width
(mm)
Device Examples (EXAMPLES only. They support a lot more IC chips than shown below. Pls see IC Chips Lists)

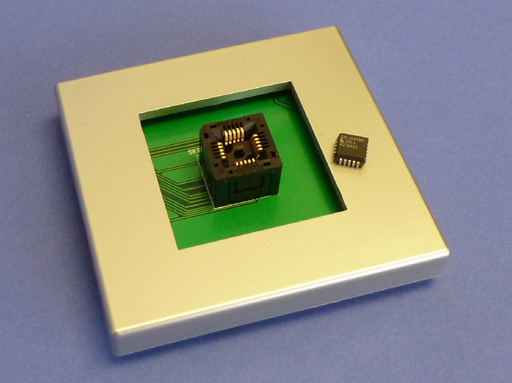

CX2020
CX2020 PLCC EPROM programmer adapter
20 9 x 9 20-pin PLCC adapter, open-top socket.
For 20-pin PLCC devices such as
GAL16V8, PALCE16V8, PAL16L8, PAL16R4, etc,

How to use CX2020 programmer adapter.
$215

buy universal programmer
CX2028
CX2020 PLCC adapter
28 11.5 x 11.5 28-pin PLCC adapter, open-top socket.
For 28-pin PLCC devices such as
GAL20V8, PALCE20V8, PALCE22V10, PAL20L8, etc.

How to use open-top sockets.
$215

buy universal programmer
CX2032
CX2032 programmer adapter
32 11.5 x 14.1 32-pin PLCC adapter, open-top socket.
For 32-pin PLCC devices such as
AMD 27C512, 27C010, 29F040, Atmel 29C020, SST39SF040, etc.

How to use open-top sockets.
(For a more durable socket, please use DX2132)
$235

buy universal programmer

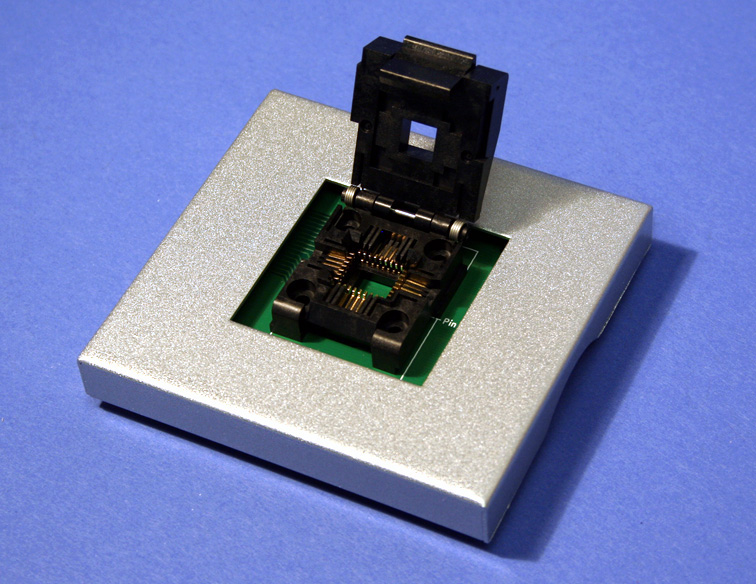

CX2132
CX2132 EPROM programmer adapter
32 11.5 x 14.1 32-pin PLCC adapter, clam-shell socket.
For 32-pin PLCC devices such as
AMD 27C512, 27C010, 29F040, Atmel 29C020, SST39SF040, etc.

(Supports the same devices as CX2032, but more durable and lasts longer.)
$315

buy universal programmer
CX2044
CX2044 EPROM programmer adapter
44 17.5 x 17.5 44-pin PLCC adapter, open-top socket.
For 44-pin PLCC devices such as
89C51, 27C1024, PIC18F4550, PSD311, NXP LPC2103FA44, NXP XC18V02, etc.

How to use open-top sockets.
(For a more durable socket, please use CX2144)
$235

buy universal programmer

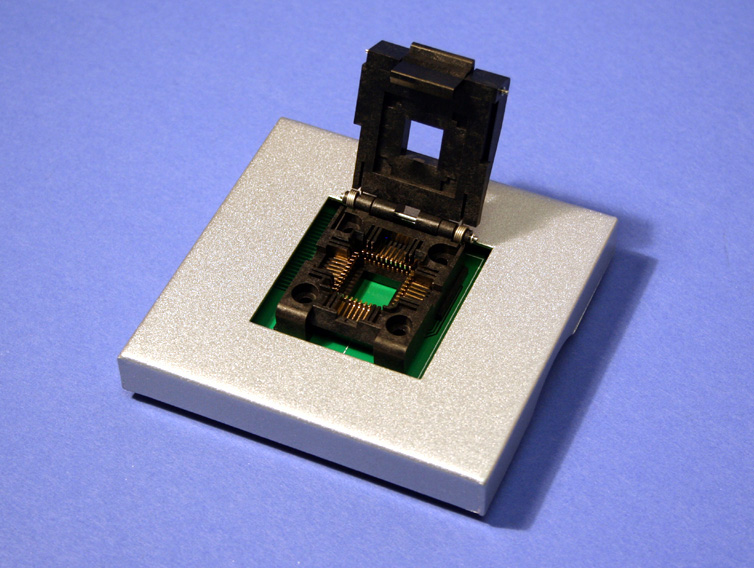

CX2144
CX2144 44-pin PLCC EPROM programmer adapter
44 17.5 x 17.5 44-pin PLCC adapter, clam-shell socket.
For 44-pin PLCC devices such as
89C51, 27C1024, PIC18F4550, PSD311, NXP LPC2103FA44, NXP XC18V02, etc.

(Supports the same devices as CX2044, but more durable and lasts longer.)
$315

buy universal programmer

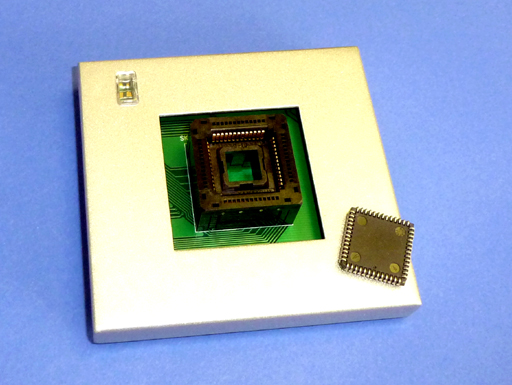

CX2052
CX2052 EPROM programmer adapter
52 20 x 20 52-pin PLCC adapter, open-top socket.
For 52-pin PLCC devices such as
Motorola/Freescale 68HC705B16, 68HC711E9, 68HC711E20, etc.

How to use open-top sockets.
(FOr a more durable socket, please use DX2152)
$275

buy universal programmer

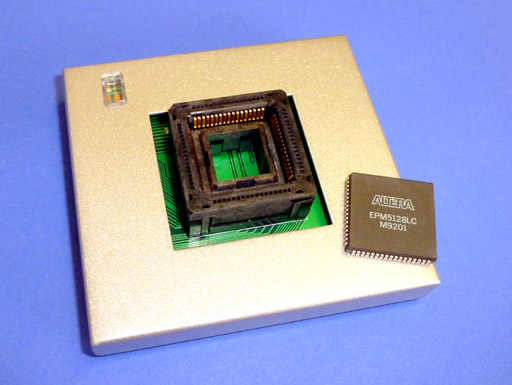

CX2068
CX2068 programmer adapter
68 24.2 x 24.2 68-pin PLCC adapter, open-top socket.
For 68-pin PLCC devices such as
Intel 87C196KB; Atmel 87C552, ATF1504AS;
Altera EPM7064SLC68; etc.

How to use open-top sockets.
(For a more durable socket, please use CX2168)
$315

buy universal programmer
CX2168
CX2168 68-pin PLCC EPROM programmer adapter
68 24.2 x 24.2 68-pin PLCC adapter, clam-shell socket.
For 68-pin PLCC devices such as
Intel 87C196KB; Atmel 87C552, ATF1504AS;
Altera EPM7064SLC68; etc.

(Supports the same devices as CX2068, but more durable and lasts longer.)
$375

buy universal programmer
CX2084
CX2084s 84-pin PLCC EPROM programmer adapter
84 29.3 x 29.3 84-pin PLCC adapter, open-top socket.
For 84-pin PLCC devices such as
Altera EPM7096LC84, Altera EPM7128SLC84, Xilinx XC95108, etc.

How to use open-top sockets.
(FOr a more durable socket, please use CX2184)
$345

buy universal programmer

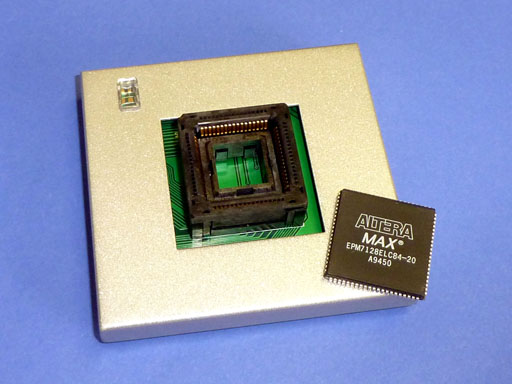

CX2184
CX2184s EPROM programmer adapter
84 29.3 x 29.3 84-pin PLCC adapter, clam-shell socket.
For 84-pin PLCC devices such as
Altera EPM7096LC84, Altera EPM7128SLC84, Xilinx XC95108, etc.

(Supports the same devices as CX2084, but more durable and lasts longer.)
$395

buy universal programmer
Back to TOP

Programmer adapters for SOIC and SOP devices
Pitch=1.27 mm
# of Pins IC Body Width
(mm)
Device Examples (EXAMPLES only. They support a lot more IC chips than shown below. Pls see IC Chips Lists)

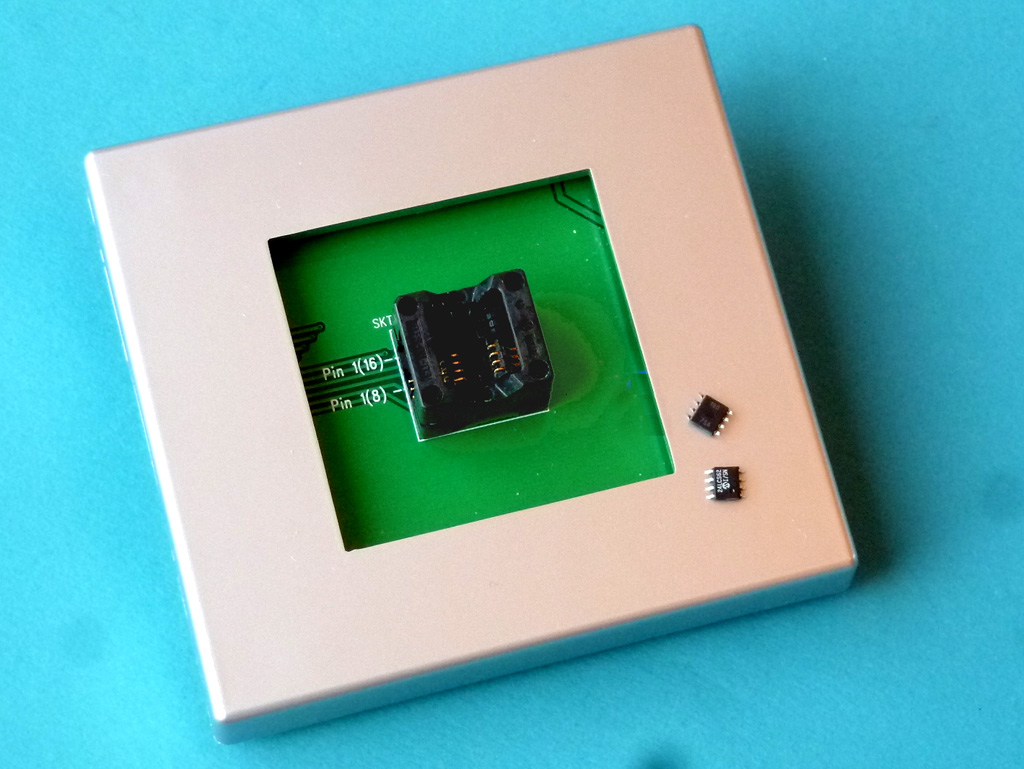

CX1045
CX1045 SOIC-8 EPROM Programmer Adapter
8
SOIC Device, 8-pin
4 mm
(150 mil)
8-pin SOIC Adapter (body width, 150 mil)
For 8-pin SOICs
(There are 2 versions of this 8-pin 4mm adapter: 1045 and 1045-1. Please see the device list, or contact us and let us know what device are you programming before you order. Thanks.)
Device Lists
$195

buy universal programmer
CX1045-1
CX1045 SOIC-8 EPROM Programmer Adapter
8
SOIC Device, 8-pin
4 mm
(150 mil)
8-pin SOIC Adapter (body width, 150 mil)
For 8-pin SOICs
(There are 2 versions of this 8-pin 4mm adapter: 1045 and 1045-1. Please see the device list, or contact us and let us know what device are you programming before you order. Thanks.)
Device Lists
$195

buy universal programmer
CX1044
CX1044 SOIC-8 EPROM Programmer Adapter
8
SOIC Device, 8-pin
5.3 mm
(208 mil)
8-pin SOIC Adapter (IC body width: 5.3 mm)
For 8-pin SOICs
(There are 2 versions of this 8-pin 4mm adapter: 1044 and 1044-1. Please see the device list, or contact us and let us know what device are you programming before you order. Thanks.)
Device Lists
$195

buy universal programmer
CX1044-1
CX1044 SOIC-8 EPROM Programmer Adapter
8
SOIC Device, 8-pin
5.3 mm
(208 mil)
8-pin SOIC Adapter (body width, 208 mil)
For 8-pin SOICs
(There are 2 versions of this 8-pin 4mm adapter: 1044 and 1044-1. Please see the device list, or contact us and let us know what device are you programming before you order. Thanks.)
Device Lists
$195

buy universal programmer
CX1065
CX1033 28-pin SOIC EPROM Programmer Adapter
14 4 mm/
150 mil
(6 mm if leads included)
14-pin SOIC Adapter
For 8-pin to 14-pin SOICs, eg. Microchip 8-pin 24xx; 14-pin PIC16F676
(Clam shell)
(Recommend using CX1030 instead for more flexibily)
$195

buy universal programmer

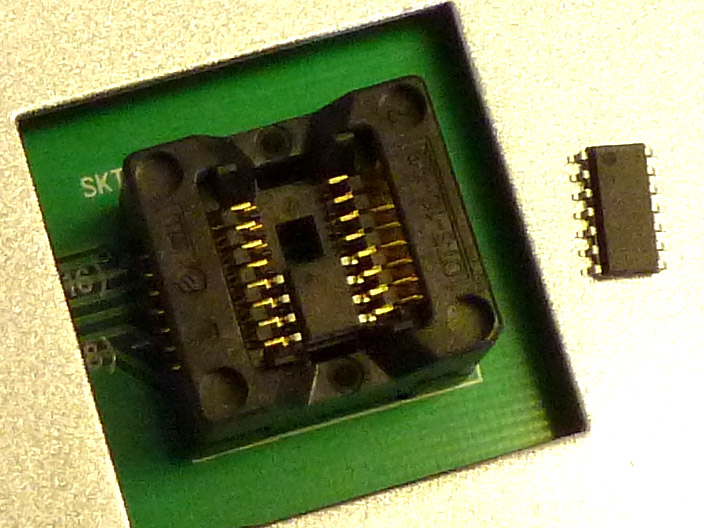

CX1016
SOIC Programmer Adapter
16 4 mm/
150 mil
(6 mm if leads included)
16-pin SOIC Adapter
For 8-pin to 16-pin SOICs, eg. Microchip 8-pin 24xx; 14-pin PIC16F676
(Open top)
$195

buy universal programmer
CX1030
CX1033 28-pin SOIC EPROM Programmer Adapter
16 4 mm/
150 mil
(6.9 mm if leads included)
16-pin SOIC Adapter (Same as above, but leads are longer)
For 8-pin to 16-pin SOICs, eg. Freescale/Motorola 8-pin MC9RS08KA1CSC, MC9S08QA2CDN, 16-pin MC9RS08KB12MSG; Xicor 8-pin X24C04, X24C16, etc.
(Clam shell)
$195

buy universal programmer
CX1031
CX1031 20-pin SOIC EPROM Programmer Adapter
20 5.3 mm
(208 mil)
20-pin SOIC Adapter
For 8-pin to 20-pin SOICs,
eg. Microchip PIC12LC509A; Motorola MC68HC908QL3CDW; ST M95256, etc.
(Clam shell)
$235

buy universal programmer
CX1031-1
CX10311 20-pin SOIC EPROM Programmer Adapter
20 5.3 mm
(208 mil)
20-pin SOIC Adapter
For these 8-pin Atmel SOICs:
AT45DB011D, AT45DB021D, AT45DB041D, AT45DB081D, AT45DB161D, AT45DB321D.
(Clam shell)
$235

buy universal programmer
CX1031-2
CX1031-2 20-pin SOIC EPROM Programmer Adapter
20 5.3 mm
(208 mil)
20-pin SOIC Adapter
For these 8-pin Atmel SOICs:
AT25DF041A, AT25DF081, AT25DF161, AT25DF321, AT26DF081A, AT26DF161, AT26DF161A, AT26DF321.
(Clam shell)
$235

buy universal programmer
CX1032
DX1032 SOIC-20 EPROM Programmer Adapter
20 5.3 mm
(208 mil)
20-pin SOIC Adapter
For 8-pin to 20-pin SOICs,
eg. Microchip PIC12LC509A; Motorola MC68HC908QL3CDW; ST M95256, etc.
(Open top)
$195

buy universal programmer
CX1032-1
DX1032 SOIC-20 EPROM Programmer Adapter
20 5.3 mm
(208 mil)
20-pin SOIC Adapter
For 8-pin to 20-pin SOICs,
eg. Winbond W25Q32FV, W25Q80BL;
Atmel A25L10P,
Eon EN25Q128A, etc.
(Open top)
$195

buy universal programmer
CX1033
CX1033 SOIC Adapter
28 7.62 mm
(300 mil)
28-pin SOIC Adapter
For 16-28 pin SOICs: PIC16C5x, 89C2051, AT28LV64, GAL22V10, etc.
$185

buy universal programmer
CX1033-1
CX1033-1 SOIC EPROM Programmer Adapter
28 7.62 mm
(300 mil)
28-pin SOIC Adapter
For 16-28 pin SOICs: Spansion S25FL128K, S70FL512S; ST M25P128, M25P64; Winbond W25X32, W25X64V, etc.
$185

buy universal programmer
Back to TOP

Socket adapters for PSOP, SSOP devices
# of Pins Body Width
(mm)
Pitch
(mm)
Device Examples
CX1026
DX1026 SSOP adapter
SSOP-34 5.3 0.65 Adapter, SSOP-34, 5.3 mm body
For 14 to 34-pin SSOP, SOP devices, e.g.
Atmel AT89LP214, AT90S1200;
Cypress CY8C21323, CY8C24423;
Microchip PIC16F1458, PIC18F23K22; etc.
$235

buy universal programmer

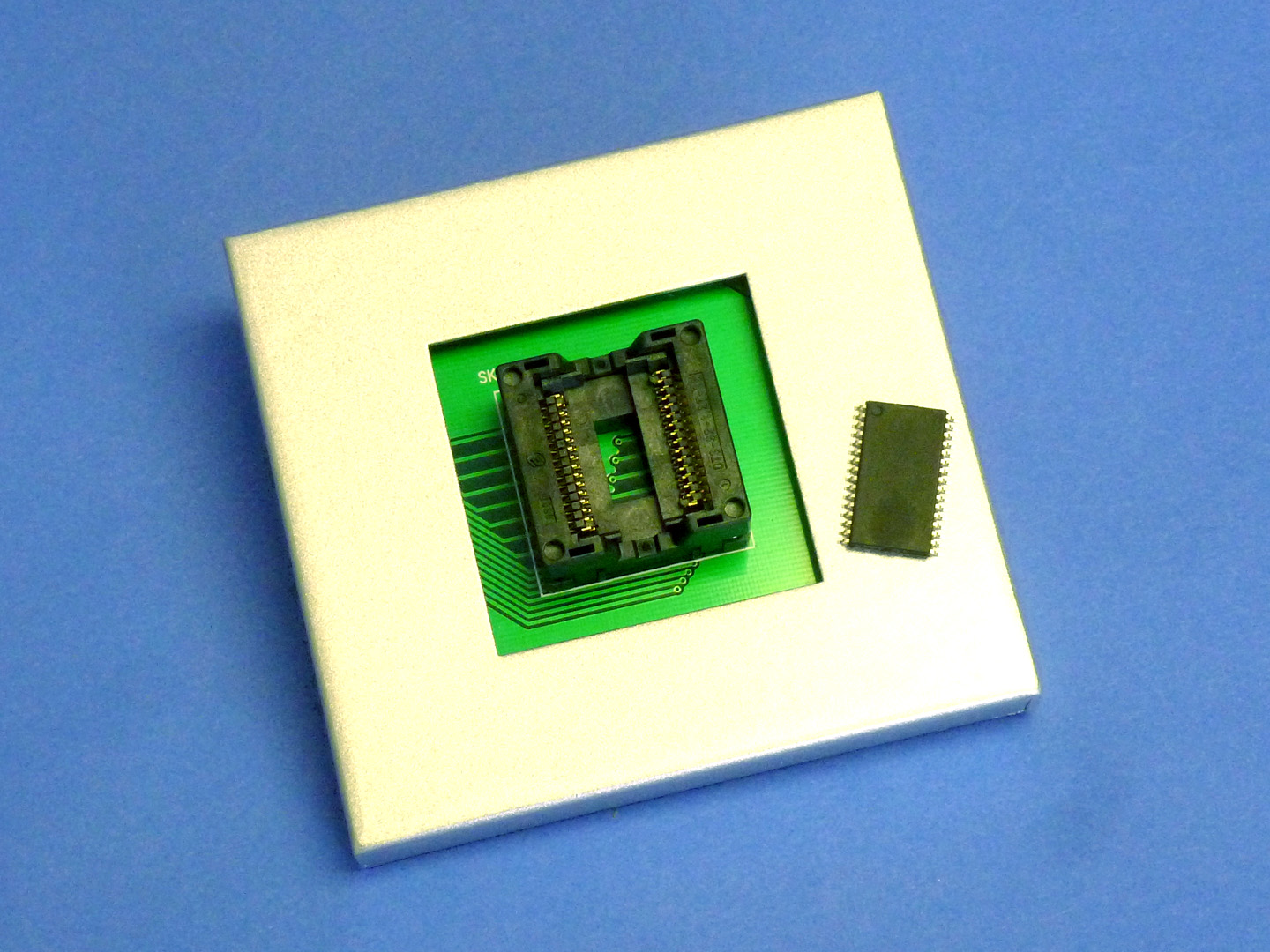

CX1020
PSOP-32 SMD Adapter
SSOP32 11.25 1.27 For 32-pin SSOP, SOP, SOIC devices, eg. Cypress CY7C53120E2, CY7C53120E4; Hitachi HN58C1001, etc.
$245

buy universal programmer
CX1014
Socket Adapter
PSOP44 13.3 1.27 For 44-pin PSOP devices, eg. AM29F400B,29LV800B; ST M29W800B; Sharp LH28F008SAN, etc.
$260

buy universal programmer
Back to TOP

LAP Device
Socket adapters for LAP, DFN, MLP, SAP devices
(These package names are not standardized. Called by different names by different IC chip manufacturers.)
MLF SMD Adapter Device Programmer
CX4002
2x3 mm
MLF (also called by other names such as DFN, MAP, etc.) Adapter, 8-pin, 2x3 mm body (E,D dimensions), 0.50 mm pitch (e dimension)
Fits Atmel AT24C128, AT24C256, AT24C512C; Macronix MX25L1006; Microchip 24AA256, 24FC65; ST M24C256; M95128; Winbonmd 25Q40C, etc.
$495
buy universal programmer

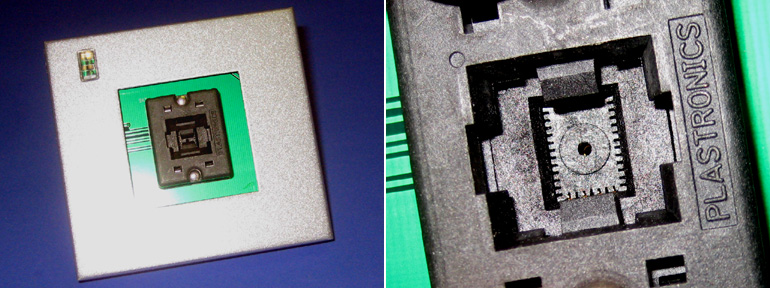

LAP SMD Adapter for Device Programmer
CX4006
6x8 mm
LAP Adapter, 8-pin, 6x8 mm body (E,D dimensions),
1.27mm pitch (e dimension)

Fits Atmel 45DB081-CN; ST M25P32-VME, M25P64-VME, etc.
$495
buy universal programmer
Back to TOP

QFN Device Socket adapters for QFN, LCC, or MLF SMD devices
# of Pins Device
Body Width (mm)
Pitch
(mm)
Device Examples
CX4010
CX4011 QFN-20 SMD adapter
16 4 x 4 0.65 QFN-16 Adapter, 4 mm body
Fits TI MSP430F2013TRSA; Microchip HA2089, PIC16F1454, PIC16F1823 etc.
$495

buy universal programmer

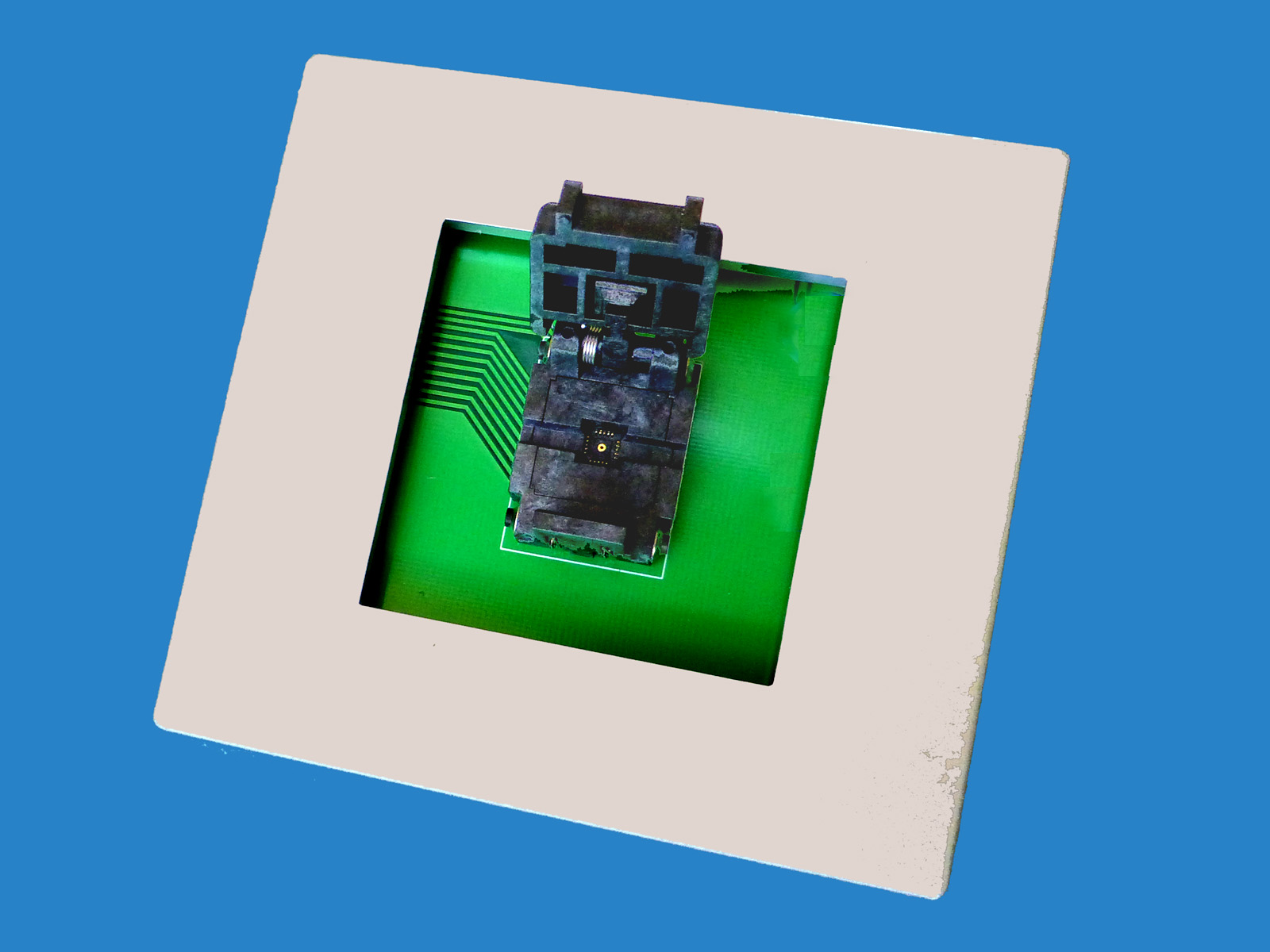

CX4011
CX4011 QFN-20 SMD adapter
20 4 x 4 0.50 QFN-20 Adapter, 4 mm body
Fits Atmel Tiny 2313; Microchip PIC16F677, PIC16F690, etc.
$495

buy universal programmer

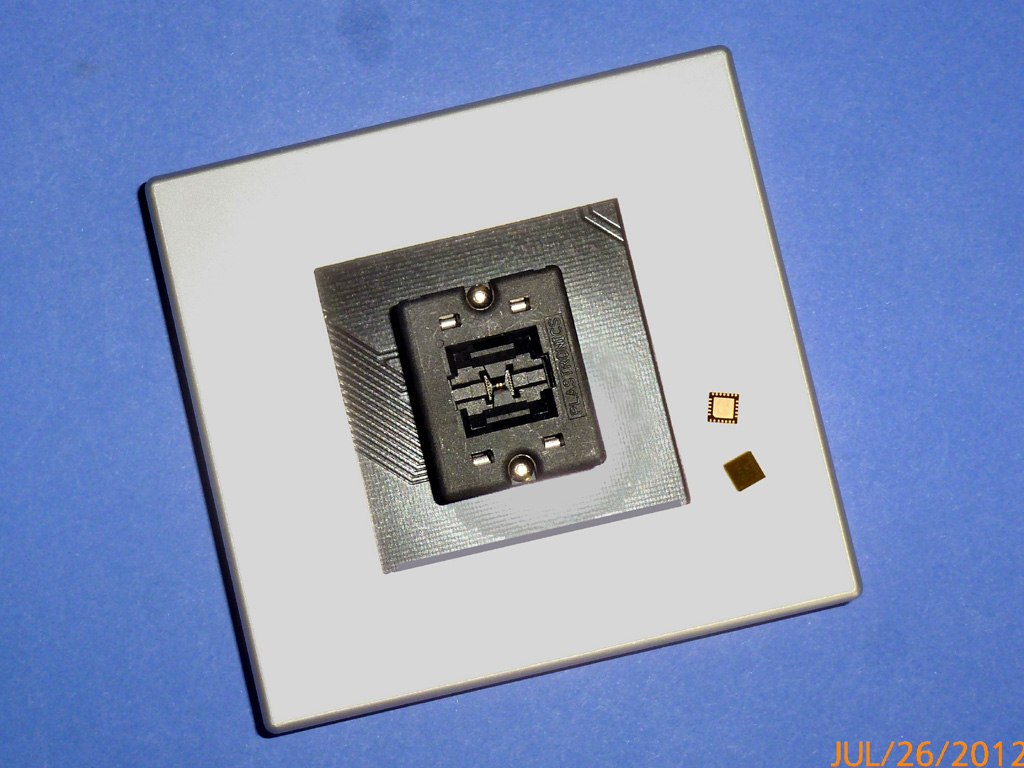

CX4033
CX4033 MLF28 SMD adapter
28 4 x 4 0.45 QFN-28 Adapter, 4 mm body
Fits Atmel MLF-28 packages such as: ATMEGA168P, ATMEGA168PA, ATMEGA168PV, etc.
$595

buy universal programmer
CX4014
CX4033 QFN28 SMD adapter
28 6 x 6 0.65 QFN-28 Adapter, 6 mm body
Fits Microchip PIC16F876A, PIC16F883, PIC16F1936, PIC18F26K20, etc.
$495

buy universal programmer
CX4015
CX4033 QFN28 SMD adapter
32 5 x 5 0.50 QFN-32 Adapter, 5 mm body
Fits Atmel ATMEGA328PV, ATMEGA32M1, ATMEGA48A, ATtiny261; TI MSP430G2333IRH32, MSP430G2353IRH32, MSP430G2403IRH32, MSP430G2503IRH32, etc.
$595

buy universal programmer
Back to TOP

Socket adapters for TSOP devices
# of Pins Body Length
(mm)
Pitch
(mm)
Device Examples (EXAMPLES only. They support a lot more devices than show below. Pls see Supported Devices Lists)
CX1006
CX1006 TSOP40 EPROM programmer adapter
40 18.4
(20mm)
0.5 AMD AM29LV017B, AM29LV017D(REVERSE); Macronix M29W008T, MX29F016(REVERSE); Sharp LH28F008SCV; ST M27W402, M28F411, M29F032D, M29W116BT, etc. $260

buy universal programmer

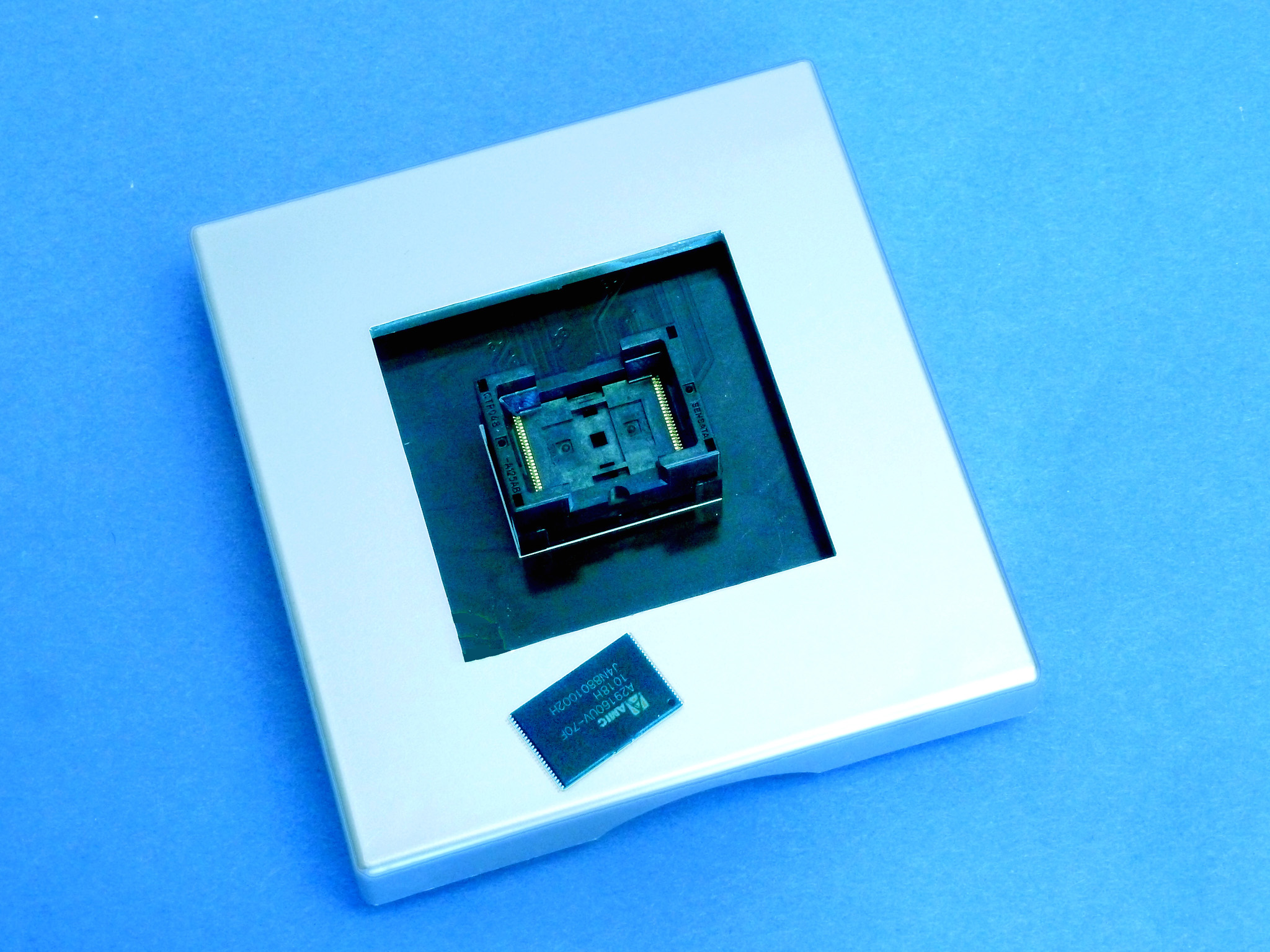

CX1004
TSOP48 EPROM programmer adapter
48 18.4
(20mm)
0.5 Intel E28F400,800, AMD 29F400,800, Spansion S29GL032N, etc. $265

buy universal programmer
CX1011
CX1011 TSOP56 EPROM programmer adapter
56 18.4
(20mm)
0.5 AMD/Spansion AM29LV128MH; Macronix MX29GL320; Inel/Numonyx/ST JS28F00AP33EF, JS28F00AP33EF, TE28F256P33TF; etc. $295

buy universal programmer
Back to TOP

Socket adapters for TSSOP IC chips
# of Pins Body Width
(mm)
Pitch
(mm)
Device Examples

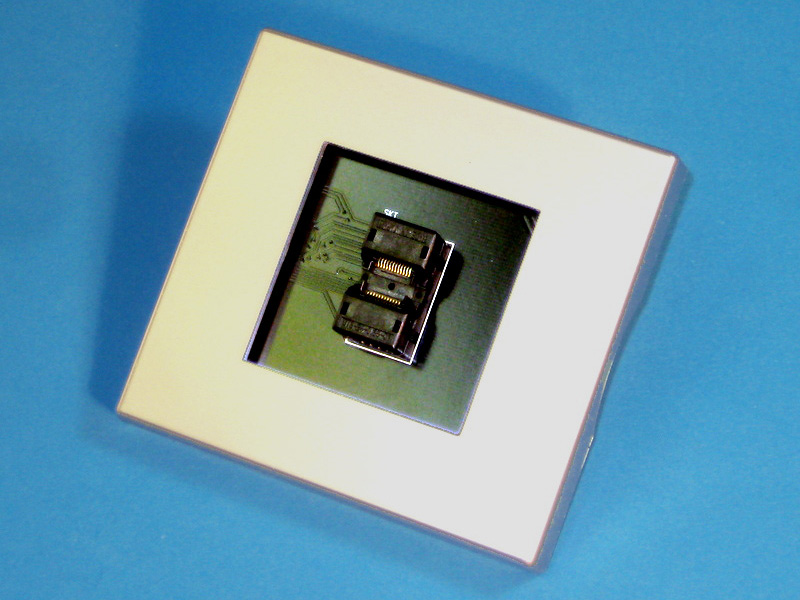

CX1000
24 4.4 mm (173 mil) 0.65 Fits 8-pin to 24-pin TSSOP
(Atmel 8-pin 24Cxx, Microchip 14-pin 16F676, 16F688, etc)
$225

buy universal programmer
CX1001
28 4.4 mm (173 mil) 0.65 Fits 8-pin to 28-pin TSSOP
(Atmel 8-pin 24Cxx, Microchip 14-pin 16F676, 16F688; NEC R5F10Y44ASP, etc)
$225

buy universal programmer
Back to TOP

Socket adapters for TQFP, LQFP IC chips
(See QFP section below for devices that are thicker.)
# of Pins Body Size
(mm)
Pitch
(mm)
Device Examples
CX3003
44-pin TQFP socket adapter
44 10*10 (1mm thick) 0.8 Atmel 89C51, Philips PSD311, Microchip PIC16F877A $345

buy universal programmer
CX3007
48 7*7 0.5 AMD/Lattice M4A5-64/32; Atmel LPC2106BBD48; Moto MC56F8006VLF; Numonyx NUC140LD3AN, W78E051DLG; TI TMS320F28027; Renesas/Hitachi M30262F4GP, R5F21206JFP; ST STM32F103C8, STM8S208C8; White Electronics W99100DG, etc $345

buy universal programmer
CX3011
64 10*10 (1.4mm thick) 0.5 Atmel AT89C5130A; Microchip 18F6520, 18F6620; ST STM32L152RB; Xilinx 9572XL; Freescale/Moto 68HC908LK24CPB $395

buy universal programmer
Back to TOP

Socket adapters for QFP, PQFP, MQFP (Devices that are thicker than TQFP)
# of Pins Body Width
(mm)
Pitch
(mm)
Device Examples
CX3002
44 10*10
(12.6 with leads)
0.8 Atmel AT87F52, ATMEGA163;
Freescale/Motorola MC68HC908AP64CFB, Hyundai GMS82516T;
LG GMS87C5032; Microchip PIC16F877; etc.
$295

buy universal programmer
CX3046
44 10*10
(13.2 with leads)
0.8 Micron MDT10P64,
Samsung S3F84I9, S3F84U8, S3P7048;
ST PSD312L; WSI PSD312L; etc.
$295

buy universal programmer
CX3018
80 14*14 0.65 Freescale/Motorola MC68HC908LJ24VFQ, MC9S12A256VFU;
Mitsubishi R5F2L387ADFA; etc.
$395

buy universal programmer
Back to TOP

Socket adapters for BGA, uBGA and FBGA IC chips
# of Pins Body Width
(mm)
Pitch
(mm)
Device Examples (EXAMPLES only. They support a lot more IC chips than shown below. Pls see IC Chips Lists)
    For BGA IC chips with 0.8 mm pitch
CX5002 48 6 x 8 0.8 Atmel A29L160BTG, AT49BV1614AT; Fujitsu MBM29LV160TM; Macronix MX29LV640DTX, MX29SL402CTXE; Intel/ST/Numonyx M29F800FT, M29W320ET; etc. $495

buy universal programmer
    For BGA IC chips with 1.0 mm pitch
CX5004 BGA adapter 64 10 x 13 1.0 Intel PC28F160C3, PC28F320C3, RC28F160C3BD, RC28F320C3BA; Spansion S29GL032M,S29GL064A,S29GL128N, S29GL256N; ST M29DW128FH,M29W128GL; MX 29LA128DB,29LA640EH, etc. $495

buy universal programmer
CX5059 100 11 x 11 1.0 Altera EPM240, EPM570, EPM7128B; Lattice LX64V-2R, etc. $595

buy universal programmer
Back to TOP

MISC (Click on picture for closeup)
SC-1310-3
Adapter storage case

Adapter storage case
Storage Case, 13"x10"x3"
Helps to organize and store your SMD adapters. Holds four DX adapters. Outside dimension is 13.5" x 10" x 3". Durable and protective.
$59

buy universal programmer
ISP-
HEADER-01

ISP Programmer Adapter
ISP In-circuit Programmer Adapter
Supports Microchip PICs, Atmel 89S53, 90S4433, ST 72F micros etc.
(Note: this solution supports only simple circuits that draw less than 30ma, For more complicated Microchip PIC circuits or circuits that need Vcc of up to 100ma, please use the PILOT series of programmers.)
$195

buy universal programmer
PWA-SP
EEprom Programmer SuperPro AC Adapter
Spare Power Adapter
For SuperPro-6100, SuperPro-6000x, 5000x, SuperPro-xxxS, xxxP and Model M, etc.
Physical plug fits USA wall outlet. AC voltage input is universal and takes 85v to 260v input Output is 12 VDC, 2 Amp, center negatice.
(To avoid potential danage to your programmer, avoid using low grade un-tested or improper AC power adapters.)
$85

buy universal programmer


Sales email:    Sales@Advin.com
Support email:   Support@Advin.com
1-408-243-7000
Office hours: 8AM to 5PM, California Time.
